Multi-Function Control
Designed to control and limit travel, slewing and mechanical movement in lifting and industrial transmission equipment.
DXZ

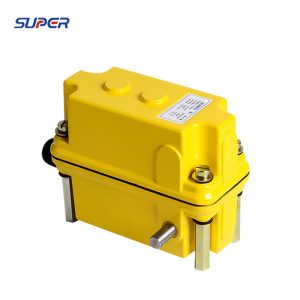

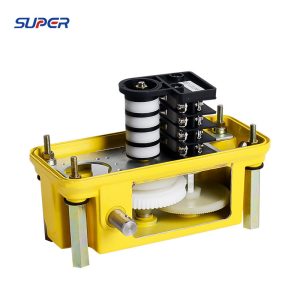

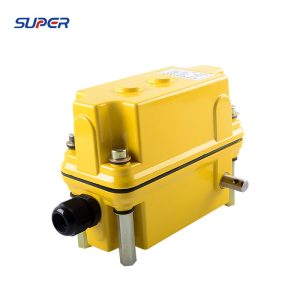

DXZ Limit Switch
DXZ multifunction slewing limit switch with potentiometer, designed for travel and position control in cranes, lifting machinery and industrial transmission systems.
- Model
- DXZ 1:274
- Drive Ratio
- 1:274
- Rated Load
- 10A / 250VAC
- Operating Speed
- 1 mm–50 cm/s
Product Overview
The DXZ multifunction limit switch is designed for travel, slewing and position control in cranes, lifting machinery and industrial transmission equipment. It can be used to control and limit mechanical movement in multiple directions, making it suitable for construction, port, mining and material handling applications.
The DXZ series features a compact aluminum housing, adjustable limit positions and multiple control functions. This 1:274 version is equipped with a potentiometer and provides reliable position control for demanding lifting and industrial machinery applications.
Reliable Control
for a Safer Tomorrow
Why This Product
Adjustable Limit Position
Adjustable limit settings provide flexible position control for different crane and machinery configurations.
Industrial Durability
Aluminum housing with IP65 protection supports reliable operation in demanding industrial environments.
Technical Specifications
- Model
- DXZ 1:274
- Drive Ratio
- 1:274
- Rated Load
- 10A / 250VAC
- Operating Speed
- 1 mm–50 cm/s
- Operating Frequency
- Mechanical: 120 times/min; Electrical: 30 times/min
- Insulation Resistance
- ≥100 MΩ at DC 500V
- Protection Degree
- IP65
- Operating Temperature
- -40°C to +55°C
- Operating Humidity
- ≤90% RH
- Housing Material
- Aluminum
- Electrical Life
- ≥100,000 operations
- Mechanical Life
- ≥1,000,000 operations
Applications
Widely used in lifting and material handling equipment.

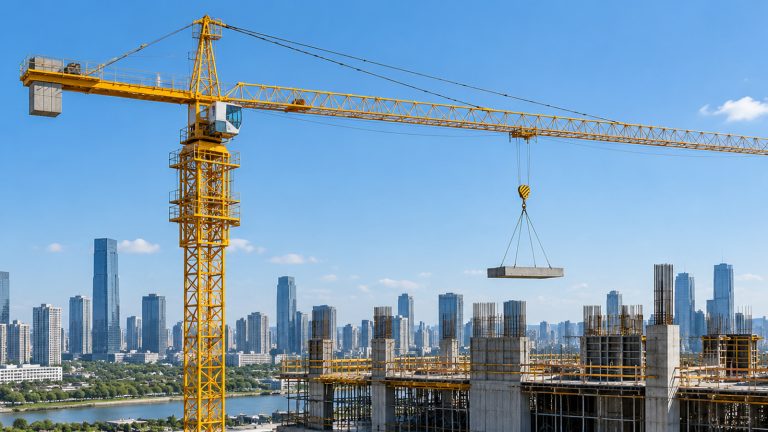

Tower Cranes
Position and travel control for tower crane mechanisms.

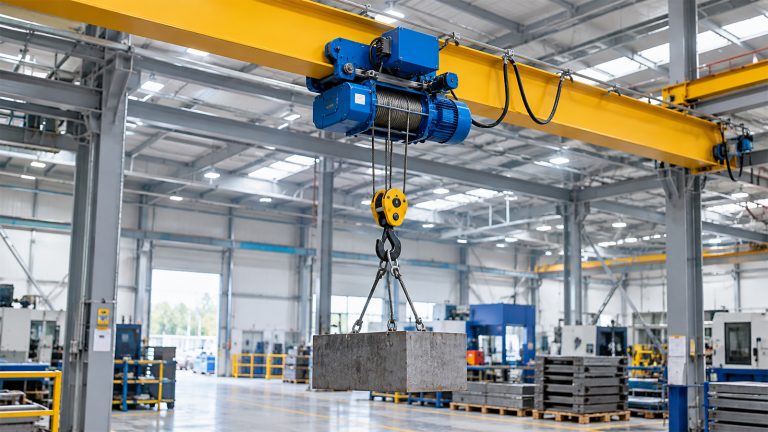

Electric Hoists
Reliable limit control for electric hoisting equipment.

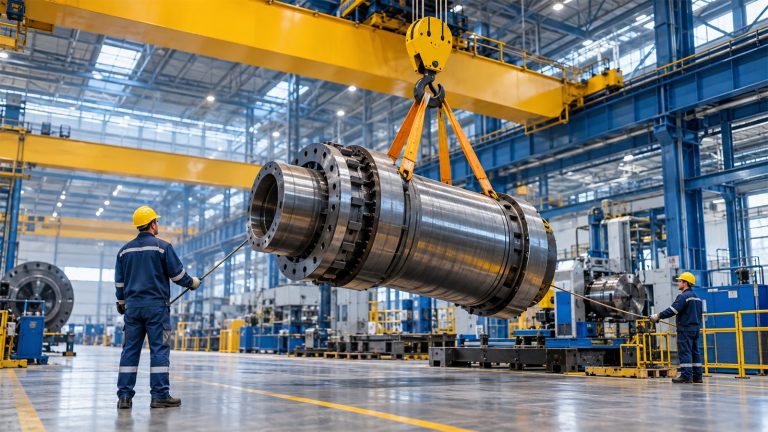

Industrial Lifting
Suitable for various industrial lifting machinery.

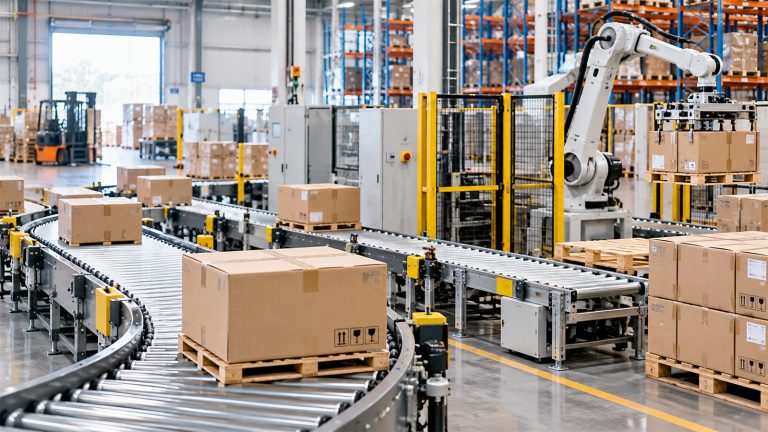

Material Handling
Used in material handling systems and other industrial equipment.
